Here is the specification of the
Yamaha Mio Soul Automatic, including the available colors and decal.
| Dimensions and Weight |
| Overall length x width x height |
1,820mm x 675mm x 1,050mm |
| Seat height |
745mm |
| Wheelbase |
1,240mm |
| Minimum ground clearance |
125mm |
| Dry (without oil and fuel) / Wet (with oil and full fuel tank) |
91kg / 95kg |
| Engine Performance |
| Engine type |
Forced air cooled 4-stroke, SOHC 2-Valve |
| Cylinder arrangement |
Single cylinder |
| Displacement |
113cm3 |
| Bore & stroke |
50.0mm x 57.9mm |
| Compression ratio |
8.8 : 1 |
| Maximum horse power |
5.7kW(8000r/min) |
| Maximum torque |
7.4 N.m(6500r/min) |
| Starting system type |
Electric starter and kickstarter |
| Lubrication system |
Wet sump |
| Engine oil capacity |
0.9 liters |
| Fuel tank capacity |
4.1 liters |
| Fuel |
| Carburetor type |
NCV24 |
| Electrical |
| Ignition system type |
DC-C.D.I. |
| Transmission |
| Primary / Secondary reduction ratio |
3.133 / 3.231 |
| Clutch type |
Dry, centrifugal automatic,Coil spring |
| Gear ratio |
| Transmission type |
V-belt automatic |
| Gear ratios |
2.399 - 0.829 |
| Chassis |
| Frame type |
Steel tube underbone |
| Caster angle / Trail |
26.5°/ 100mm |
| Tire size (Front / Rear) |
70/90-14M/C 34P / 80/90-14M/C 40P |
| Brake |
| Brake type (Front / Rear) |
Single disc / Drum |
| Suspension |
| Suspension type (Front / Rear) |
Telescopic fork / Unit swing |
| Bulbs(voltage/wattagex quantity) |
| Headlight |
12V, 32W/32W x 1 |
 |
| Yamaha Mio Soul Automatic Black Color |
 |

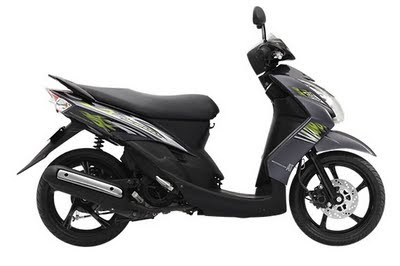

| Yamaha Mio Soul Automatic Metallic Gray Color |
 |
| Yamaha Mio Soul Automatic Cocktail White Color |
 |
| Yamaha Mio Soul Automatic Cocktail Yellow Color |
