Details and specifications of the
Yamaha Nouvo Z Automatic motorcycle, including the available colors and decals.
| Dimension and Weight |
| Overall length x width x height |
1,935mm x 675mm x 1,090mm |
| Seat height |
770mm |
| Wheelbase |
1,280mm |
| Minimum ground clearance |
135mm |
| Dry (without oil and fuel) / Wet (with oil and full fuel tank) |
103kg / 108kg |
| Engine Performance |
| Engine type |
Forced air cooled 4-stroke, SOHC |
| Cylinder arrangement |
Forward-inclined single cylinder |
| Displacement |
113cm3 |
| Bore & stroke |
50.0mm x 57.9mm |
| Compression ratio |
8.8 : 1 |
| Maximum horse power |
6.54kW(8000r/min) |
| Maximum torque |
8.62 N.m(7000r/min) |
| Starting system type |
Electric starter and kickstarter |
| Lubrication system |
Wet sump |
| Engine oil capacity |
0.9 liters |
| Fuel tank capacity |
4.8 liters |
| Fuel |
| Carburetor type |
BS25 |
| Electrical |
| Ignition system type |
DC-C.D.I. |
| Transmission |
| Primary / Secondary reduction ratio |
3.133 / 3.583 |
| Clutch type |
Dry, centrifugal automatic, Coil spring |
| Gear ratio |
| Transmission type |
V-belt automatic |
| Gear ratios |
2.399 - 0.829 |
| Chassis |
| Frame type |
Steel tube underbone |
| Caster angle / Trail |
25°/ 112mm |
| Tire size (Front / Rear) |
70/90-16 36P / 80/90-16 43P |
| Brake |
| Brake type (Front / Rear) |
Single disc / Drum |
| Suspension |
| Suspension type
(Front / Rear) |
Telescopic fork / Unit swing |
| Bulbs(voltage/wattagex quantity) |
| Headlight |
12V, 25/25W, x 2 |
 |

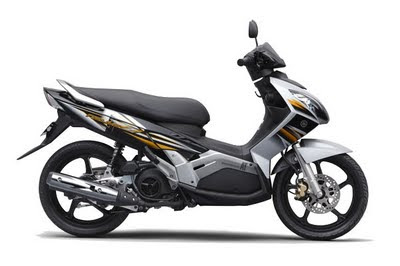

| Yamaha Nouvo Z Automatic Cocktail White Color |
 |
| Yamaha Nouvo Z Automatic Metallic Black Color |
 |
| Yamaha Nouvo Z Automatic Deep Metallic Purplish Blue Color |
